Application Environment

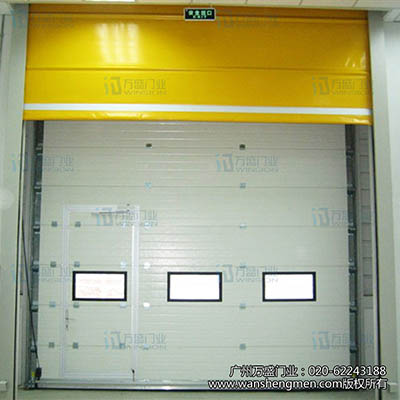

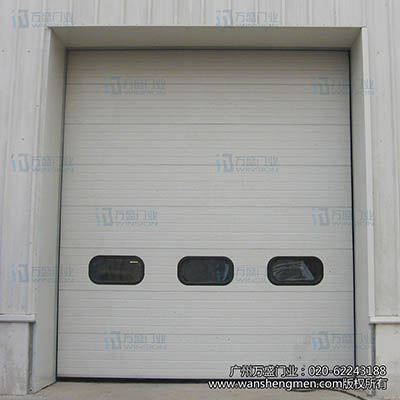

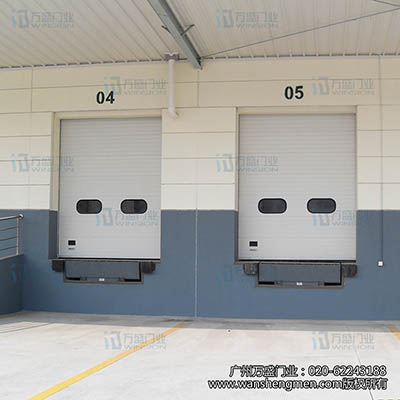

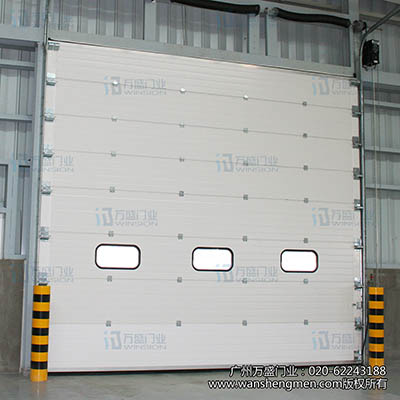

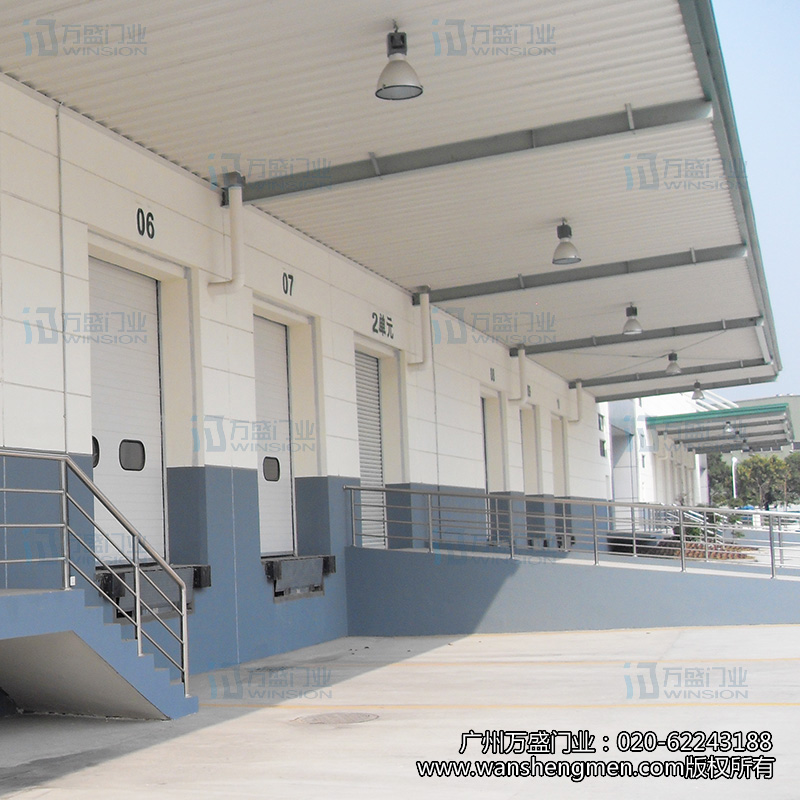

Wansheng industrial sectional doors are designed for customers who require robust exterior doors for industrial buildings with good thermal insulation and space-saving features. This industrial sectional door slides upward under the ceiling when opened, occupying no interior space, keeping the doorway fully open. The high-quality sandwich-type door panel provides excellent insulation performance. Combined with various optional operations and after-sales service organization, Wansheng industrial sectional doors can meet different customer requirements.
- Curtain Material: Double-layer high-strength, high-toughness, corrosion-resistant aluminum alloy extruded.
- Surface Treatment: Classic powder coating process, featuring strong durability, anti-aging, corrosion resistance, non-fading, easy maintenance, and long-lasting new appearance.
- Application Range: Suitable for medium and high-grade factory exterior doors.
- Opening Speed: Average speed of 12-18 meters per minute.

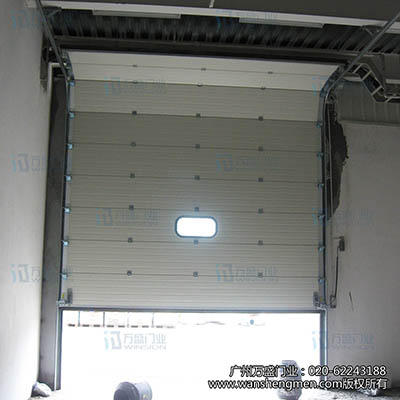

- Operating Principle: Multi-joint movable door panels connected in series, fixed in the guide rail, rotating up and down around the reel above the door.
- Driving Principle: A dedicated motor drives the roller shutter center shaft to achieve roller shutter switching, automatically stopping when reaching the upper and lower limits set by the motor.
- Appearance: The inner and outer surfaces of the door body are specially treated to meet the appearance requirements of various modern industrial plants.
- Wind Resistance: Through internal reinforcement of the door panel, combined with other reinforcement accessories, the industrial door can withstand grade 12 strong winds.
- Light Transmittance: Double-layer insulated glass windows in rectangular or oval design, surrounded by flexible rubber, providing good lighting and transparency.
- Sealing Performance: Sealed structure around the door frame ensures good sealing performance. The bottom is equipped with a sealing strip to effectively prevent dust, rain, and insects from entering.
- Thermal Insulation: The sandwich structure door panel has good thermal insulation performance, effectively reducing energy consumption.
- Noise Reduction: Good sound insulation effect, reducing noise transmission.

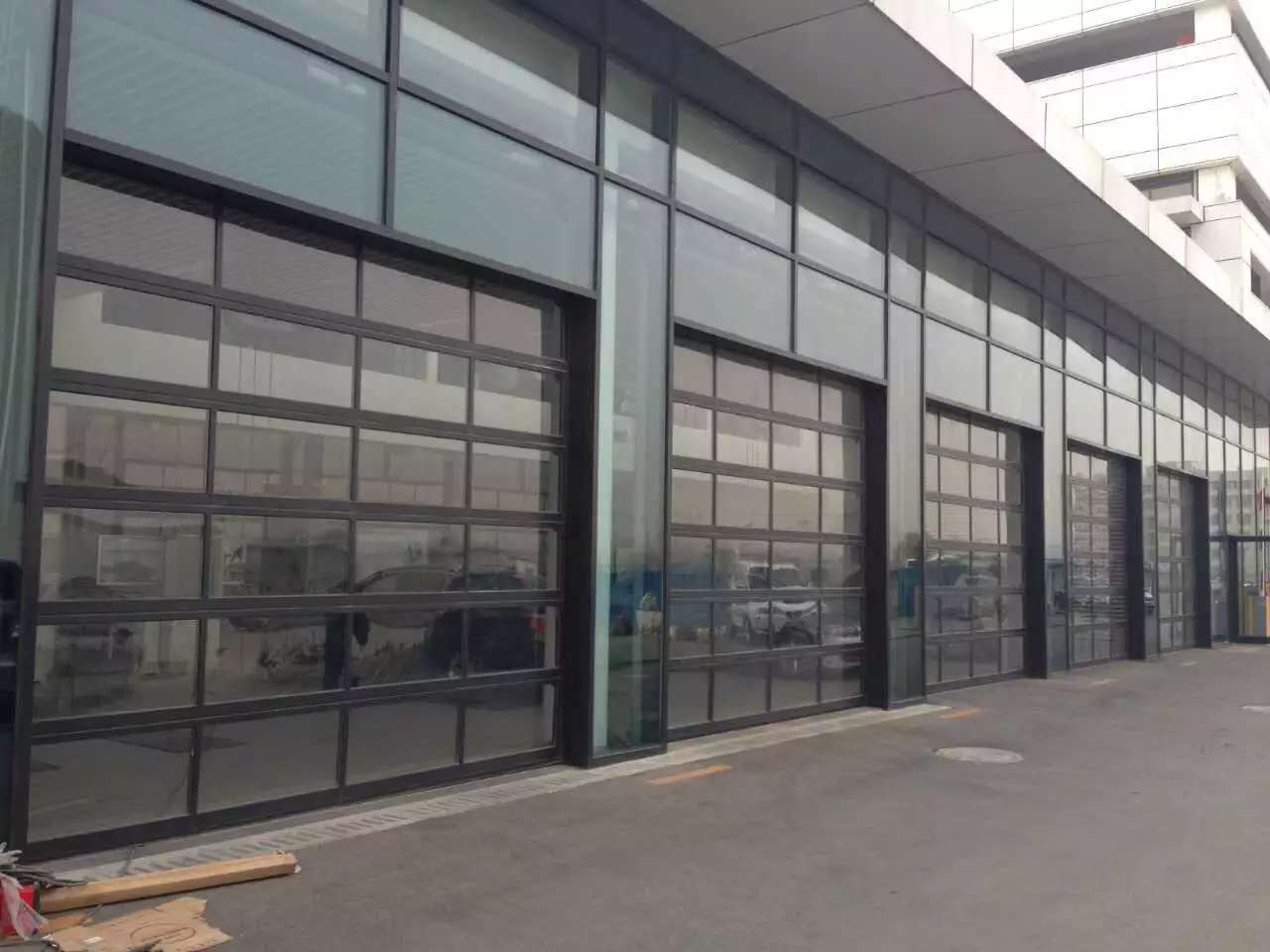

Anti-theft Performance: Equipped with dedicated door bolts and locks that can be locked from the inside, combined with the sturdy door body, effectively preventing prying and theft.- By Application: Industrial sectional door and see-through lifting door
- By Opening Method: Manual sectional door and electric sectional door
Industrial Sectional Door Operation
The lifting door operation is divided into manual control and electric control modes:
- Manual Control: Operated by hand chain or manual crank, suitable for small door openings or emergency use.
- Electric Control: Operated by motor with push button, remote control, radar, or access control system, suitable for frequent use and large door openings.
Manual, electric, remote control, radar, geomagnetic loop, photoelectric sensor, access control, interlock, etc.
