Applicable Environments

• Indoor and outdoor doorways with wind pressure requirements
• Light industry, food, electronics, printing & packaging, warehousing, automotive, manufacturing
• Areas with high hygiene requirements
• High-frequency passageways

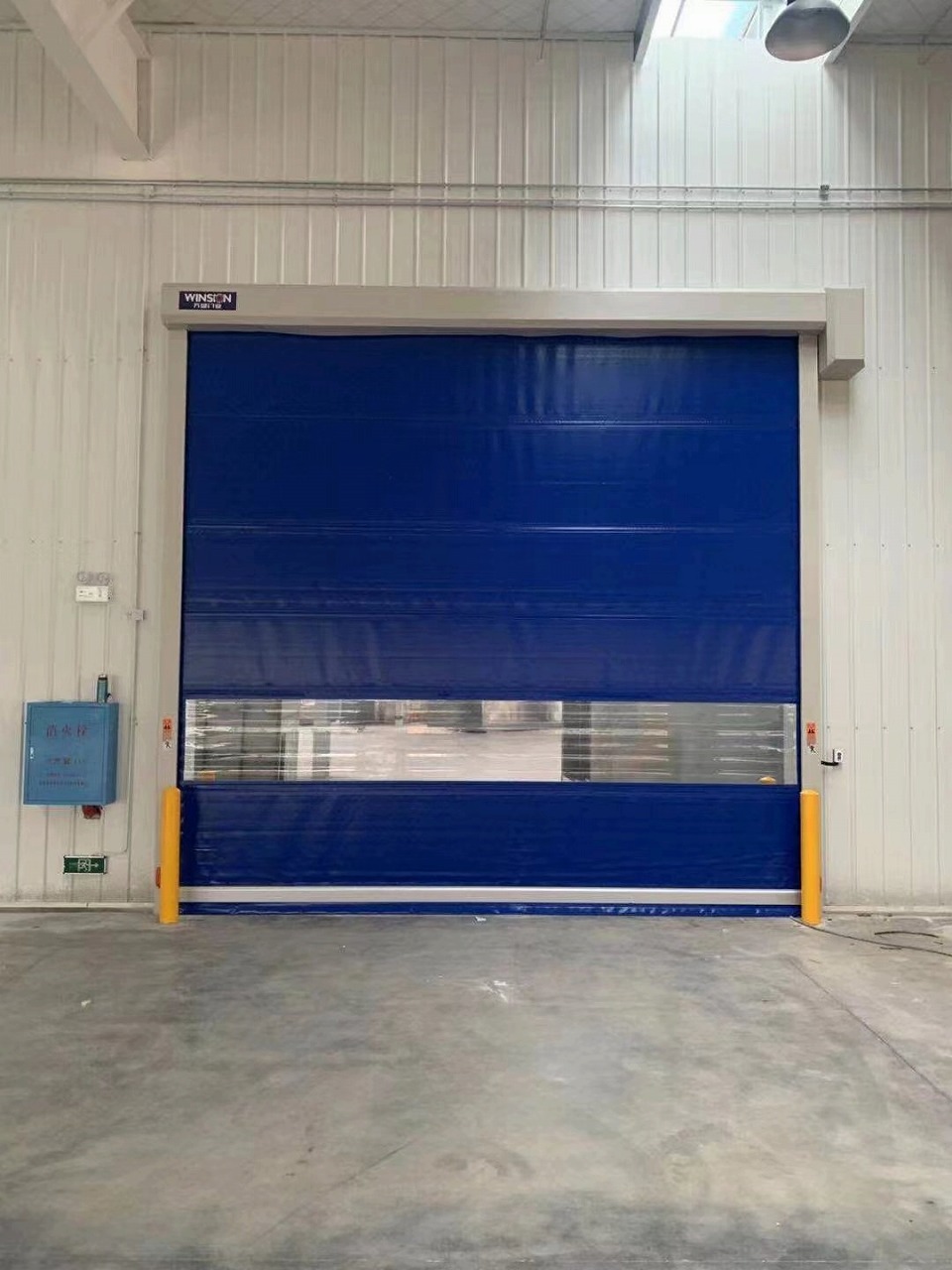

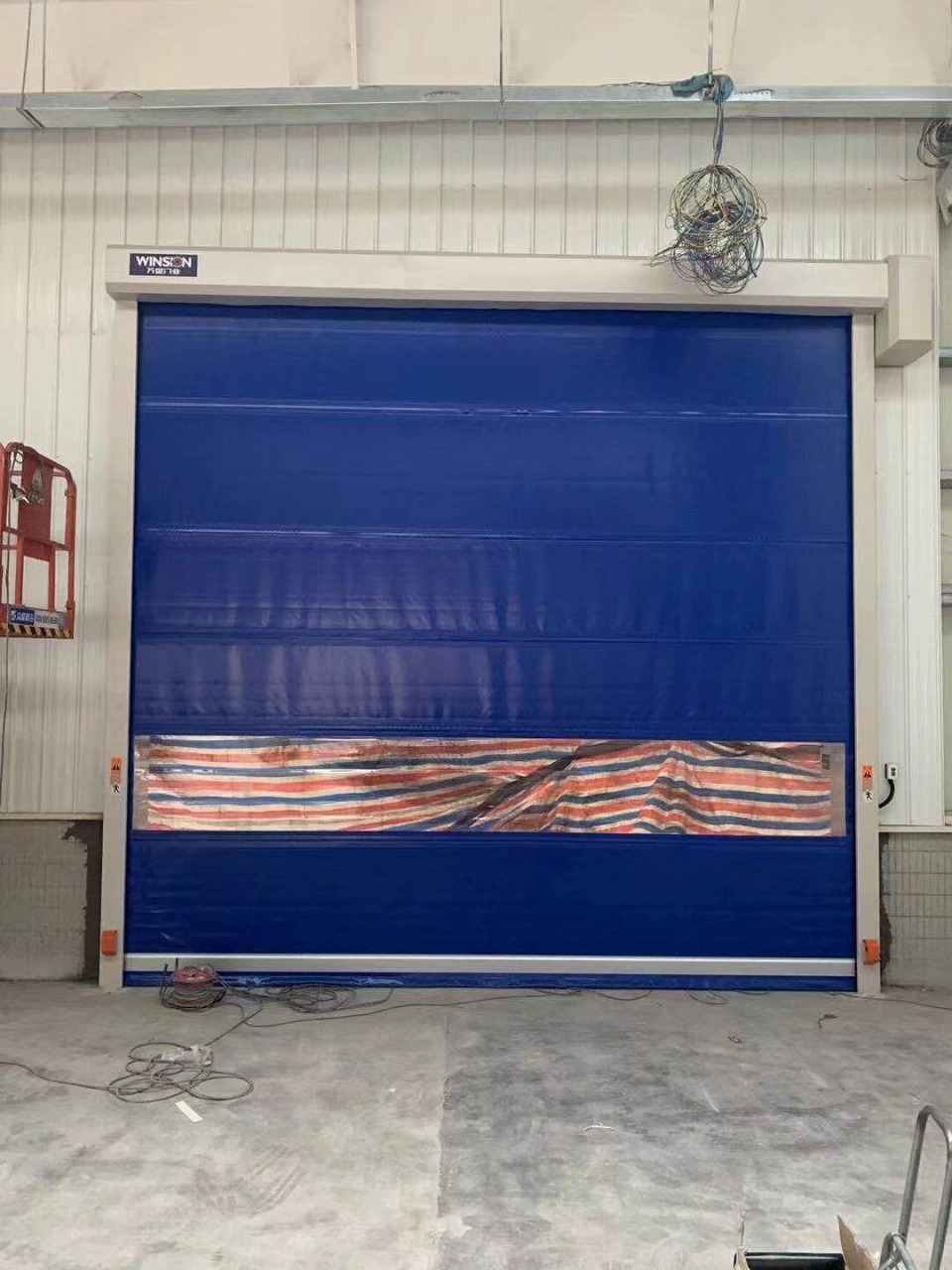

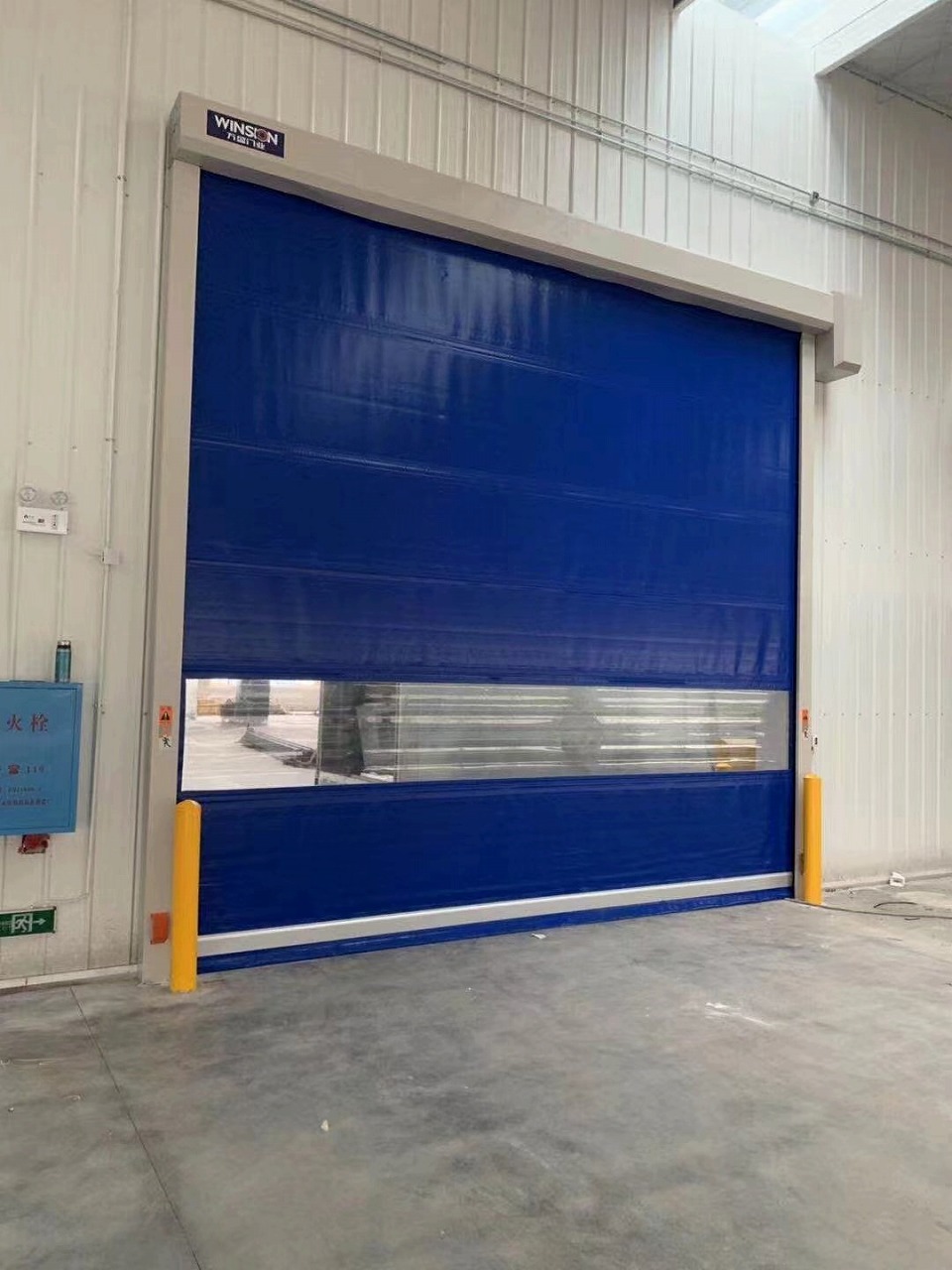

Technical Specifications (KSM-550 Wind-resistant)

• Frame: Stainless steel frame or cold-rolled steel electrostatic spray frame, electrostatic spray door head and housing cover
• Motor: High-performance brake motor, power 0.75-1.5KW, power supply 220V/380V, brake voltage 220V
• Control system: Microcomputer variable frequency control cabinet, control voltage: safe low voltage 24VDC
• Opening speed: Opening 0.6-1.2m/s / Closing 0.6-1.0m/s (variable frequency adjustable)
• Curtain material: High-density polyester fiber knife-coated fabric with surface coating, thickness 0.8mm-1.5mm, various colors. Tensile strength 5700/5100N/5cm, tear strength 900/80N, fire rating: German standard MZD/NBL. Operating temperature: -30°C to +70°C
• Transparent window: PVC transparent crystal soft board, thickness 1.5mm, rectangular or oval
• Wind resistance: Built-in steel wind-resistant rods (1-2 inch selected by door size). Strong wind resistance: 15m/s (50Pa standard 3×3)
• Sealing: U-shaped airbag at curtain bottom conforms to uneven ground, double-side sealing strips on frame. Dust and insect proof
• Safety: Standard infrared photoelectric protection, pressure airbag protection, warning light, collision post, manual crank for power outage
